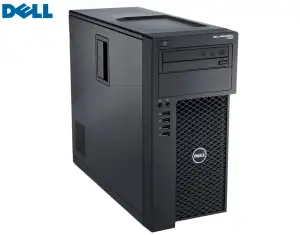

Dell Workstation Precision T1700 i3,i5,i7 4th Gen & E3-1200v
Περιορισμένα τεμάχια
- Κατηγορία
- Xeon E3, E5 v3 & v4 Series
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel C226 Chipset
- Processors
- Intel Xeon Processor E3-1200 v3 Family; 4th generation Intel Core i7 and i5
- Memory Support
- Up to 32GB 1600MHz ECC; up to 16GB 1600MHz non-ECC DDR3 memory; 4 DIMM slots
- Hard Drive
- Up to two 3.5" SATA drives: 250GB, 500GB, 1TB, 2TB; Or up to four 2.5" SATA drives: 320GB, 500GB
- Removable Media
- Up to two optional optical drives: DVD-ROM; DVD+/-RW; Optional 19-in-1 media card reader
- Expansion Bays
- Two internal 3.5" bays; two external 5.25" optical bays
- Expansion Slots
- One PCIe x16 Gen 3; one PCIe x16 Gen 2 wired x4; one PCIe x1; One PCI 32bit/33MHz
- Graphics
- Support for one PCI Express x16 Gen 3 graphic card up to 150W (total for graphics)
- Audio
- Integrated Realtek ALC269Q High Definition Audio
- Communications
- Integrated Intel 82579 Gigabit Ethernet controller
- I/O Ports
- Front: Two USB 2.0, Two USB 3.0, Mic/Headphones; Rear: Four USB 2.0, Two USB 3.0, VGA, DP, Serial. Two PS2, Audio I/O
- Power
- 365W 90% efficient (80 Plus Gold Certified); 290W 65% efficient
- Dimensions
- HxWxD: 14.17" x 6.89" x 17.13" / 360mm x 175mm x 435mm
- Weight
- N/A

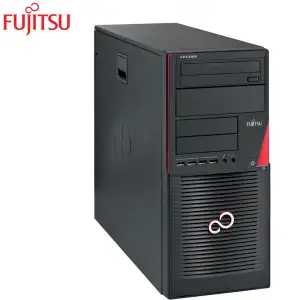

Fujitsu Workstation W530 Tower Xeon E3-1245V5
Διαθέσιμο
- Κατηγορία
- Xeon E3, E5 v3 & v4 Series
- Operating System
- Windows 7 Home & Pro. MAR, Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel? C226
- Processors
- Intel? 4th gen Core? i7 Quad Core, i5 Quad Core, i3 Dual Core and Xeon E3-v3
- Memory Support
- Four (4) DIMM slots , Up to 32 GB (DDR3) ECC/non-ECC 1,600 MHz
- Hard Drive
- Serial ATA III up to 4 Gb, SSD up to 512 Gb, SSHD up to 1 Tb
- Removable Media
- Blu-ray Disc? Triple Writer, DVD Super Multi
- Expansion Bays
- External: Two (2) 5.25-inch, Two (2) 3.5-inch, Internal: Two (2) 3.5-inch, One (1) 2.5-inch
- Expansion Slots
- One (1) PCI-e 3.0 x16, One (1) PCI-e 2.0 x4, Two (2) PCI-e x1
- Graphics
- Intel? HD Graphics P4600, Intel? HD Graphics 4600, Intel? HD Graphics 4400
- Audio
- Realtek ALC671
- Communications
- 10/100/1,000 MBit/s Intel? I217LM
- I/O Ports
- Front: 2 USB 2.0, 2 USB 3.0, Audio I/O, Rear: 4 USB 2.0, 2 USB 3.0, Audio I/O, VGA, DVI-D, DP
- Input Devices
- KBPC PX ECO, Mouse M440 ECO
- Power
- 500W Active PSU
- Dimensions
- 175 x 419 x 395 mm
- Weight
- approx. 11 kg

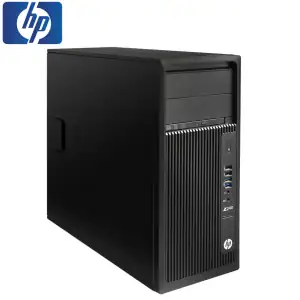

HP Workstation Z240 MT Xeon E3-1240V5, E3-1245V5
Διαθέσιμο
- Κατηγορία
- Xeon E3, E5 v3 & v4 Series
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel PCH C236
- Processors
- Core i3/i5/i7-6xxx processors, Xeon E3 processors
- Memory Support
- 4 DDR4 memory slots, DDR4, Max 64 GB
- Hard Drive
- SATA or SSD
- Removable Media
- N/A
- Expansion Bays
- 1 shared internal/external 3.5" bay, 1 internal 3.5" bay, 1 internal 2.5" bay (for SSD only)
- Expansion Slots
- 1 PCIe Gen3 x16, 1 PCIe Gen3 x4 (x4 connector), 1 PCIe Gen3 x4 (x16 connector), 1 PCIe Gen3 x1, 1 PCI (optional), 1 M.2 PCIe Gen3 x4
- Graphics
- Intel Integrated Graphics for Xeon processors
- Audio
- Integrated Realtek HD ALC221-VB audio
- Communications
- Integrated Intel I219LM PCIe GbE
- I/O Ports
- Front: 2 USB 3.0, 2 USB 2.0 (1 charging), 1 headphone; 1 microphone, Back: 4 USB 3.0, 2 USB 2.0, 2 DisplayPort 1.2,1 DVI-I single link, 1 serial (optional); 1 parallel (optional), 2 PS/2; 1 RJ-45; 1 audio line-in; 1 audioline-out
- Power
- 400 W 92% efficient, wide-ranging, active PFC, 280 W 90% efficient, wide-ranging, active PFC
- Dimensions
- 170 x 442 x 399 mm
- Weight
- Starting at 8.6 kg

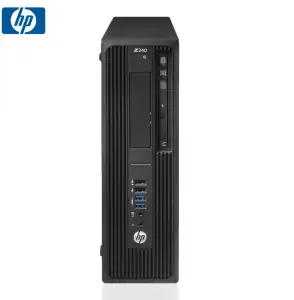

HP Workstation Z240 SFF Xeon E3-1230V5,E3-1225V6,E3-1225V6
Διαθέσιμο
- Κατηγορία
- Xeon E3, E5 v3 & v4 Series
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel PCH C236
- Processors
- Core i3/i5/i7-6xxx processors, Xeon E3 processors
- Memory Support
- 4 DDR4 memory slots, DDR4, UDIMM (unbuffered), ECC and non-ECC, 2133MT/s DDR4, Max 64 GB
- Hard Drive
- 500GB to 4TB SATA 3.0-Gb/s, 128GB to 1TB SSD Drives
- Removable Media
- N/A
- Expansion Bays
- 1 shared internal/external 3.5" bay, 1 internal 3.5" bay, 1 internal 2.5" bay (for SSD only)
- Expansion Slots
- 1 PCIe Gen3 x16 slot, 1 PCIe Gen3 x4 slot (x16), 2 PCIe Gen3 x1 slot
- Graphics
- Intel HD Graphics 530 (on Core i3/i5/i7-6xxx processors); Intel Integrated Graphics for Xeon processors
- Audio
- Integrated HD Audio
- Communications
- Integrated Intel I219LM PCIe GbE Controller
- I/O Ports
- Front: 2 USB 2.0, 2 USB 3.0, Headphone/Mic, Rear: 6 USB 3.0, 2 PS2, 1 Serial, Audio I/O, 3 DP
- Input Devices
- Standard Keyboard (USB or PS/2), Mouse (USB or PS/2)
- Power
- 240W, 92% efficiency, wide-ranging, active PFC Power Supply
- Dimensions
- 100 x 338 x 381 mm
- Weight
- 6,7 kg
HP Workstation Z440 Xeon E5-1600v3, E5-1600v4, E5-2600v3/v4
Διαθέσιμο
- Κατηγορία
- Xeon E3, E5 v3 & v4 Series
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel C612
- Processors
- Intel Xeon Processors: E5-1600 v3/v4 family (4C/6C/8C), E5-2600 v3 family (8C)
- Memory Support
- 8 DIMM Slots for DDR4 ECC Registered Memory
- Hard Drive
- 500GB to 4TB SATA 3.0-Gb/s, 128GB to 1TB SSD Drives
- Removable Media
- 16X DVD-ROM SATA Drive, 16X DVD+/-RW SuperMulti SATA Drive, Blu-ray Writer
- Expansion Bays
- External: Two (2) 5.25-inch, Internal: Two (2) 3.5-inch
- Expansion Slots
- 2 PCIe x16 Gen3 Slots, 1 PCIe x8 Gen 3, 1 PCIe x1 Gen 2, 1 PCIe x4 Gen 2, 1 PCI Slot
- Graphics
- N/A
- Audio
- Integrated Intel/Realtek HD ALC262 Audio
- Communications
- Integrated Intel I218LM PCIe GbE Controlle
- I/O Ports
- Front: Four (4) USB 3.0, Headphone/Mic, Rear: Two (2) USB 2.0, Four (4) USB 3.0, 2 PS2, Audio I/O
- Power
- 525W
- Dimensions
- 43.2 x 16.8 x 45.6 cm
- Weight
- 13.5 kg

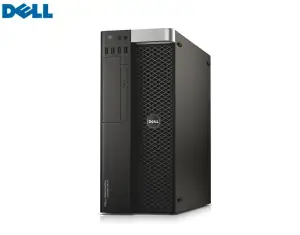

Dell Workstation Precision 7810 Xeon E5 series
Περιορισμένα τεμάχια
- Κατηγορία
- Xeon E3, E5 v3 & v4 Series
- Operating System
- Windows 10 Pro for Workstations, Windows 10 Pro for Workstations Downgrade to Windows 7, Red Hat Linux, Suse Linux
- Chipset
- C612
- Processors
- One or two Intel Xeon processor E5-2600 v3 family
- Memory Support
- Up to 256GB 8 DIMM slots DDR4
- Hard Drive
- SATA or SSD
- Removable Media
- DVD ROM (optional)
- Expansion Bays
- N/A
- Expansion Slots
- 5 full-length slots, 1 half length, two PCIe x16 Gen 3; 1 PCIe x16 Gen 3 wired x8 (half-length); 1 PCIe x4 Gen 2; 1 PCIe x1 gen2; one PCI 32 bit/33MHz
- Graphics
- depending on model
- Audio
- N/A
- Communications
- Intel I217 Gigabit Ethernet
- I/O Ports 3 USB 2.0, 1 USB 3.0, 1 Microphone, 1 Headphone Internal
- 3 USB 2.0 internal, 1 serial, 1 RJ45
- Power
- 685W
- Dimensions
- 414 x 172.6 x 471mm
- Weight
- start at 13.50 kg

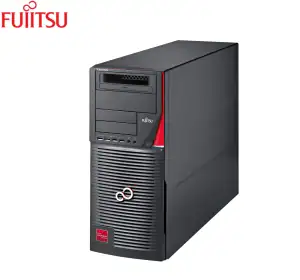

Fujitsu Workstation R970 Tower Xeon Silver
Περιορισμένα τεμάχια
- Κατηγορία
- Xeon E3, E5 v3 & v4 Series
- Operating System
- Windows 7 Home & Pro. MAR, Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel? C226
- Processors
- Intel Xeon Platinum, Gold, Silver edition
- Memory Support
- Up to 512 GB (DDR4)
- Hard Drive
- SSD or SATA or M2 SSD
- Removable Media
- DVD ROM (optional)
- Expansion Bays
- 2.5-inch internal bays 8, 3.5-inch internal bays 4, 3.5-inch external bays 2, 5.25-inch external bays 1
- Expansion Slots
- 2 x PCI-Express 3.0 x8, 4 PCI-Express 3.0 x16, PCI (32-bit / 33 MHz x 1, PCI-Express 3.0 x8 (internal) x 1
- Graphics
- Depending on model
- Audio
- Realtek ALC671
- Communications
- Gigabit Ethernet
- I/O Ports
- USB 2.0 x 9 , USB 3.1 Gen1 x 4, Ethernet
- Power
- 500W PSU
- Dimensions
- 186 x 618 x 430 mm
- Weight
- approx. 20 kg
