BATTERY VRLA RECHARGABLE 6V-12AH FOR UPS NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.081.071
- Κατηγορία
- Batteries
BATTERY VRLA RECHARGABLE 6V-7AH FOR UPS NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.081.079
- Κατηγορία
- Batteries
BATTERY VRLA RECHARGABLE 12V-12AH FOR UPS NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.081.001
- Κατηγορία
- Batteries
BATTERY VRLA RECHARGABLE 12V-18AH FOR UPS NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.081.004
- Κατηγορία
- Batteries
UPS 650VA TESCOM LEO PLUS LCD 650AP NEW
Διαθέσιμο
- Κωδικός
- 0.501.494
- Κατηγορία
- Tescom UPS
- Voltage
- 100 / 110 / 120 V: 80 - 150 Vac, 220 / 230 / 240 V: 162 - 295 Vac (145 - 295 Vac optional)
- Frequency
- 50 / 60 Hz + - 10% (auto-sensing)
- Voltage
- 100 / 110 / 120 Vac + - 10% or 220 / 230 / 240 Vac + - 10%
- Frequency
- 50 / 60 Hz + - 1% (auto-sensing)
- Waveform
- Mains mode: pure sine wave Battery mode: simulated sine wave
- Transfer time
- Typical 2 - 7 ms, 10 ms max.
- DC voltage
- 12 V
- Configuration
- 12 V / 7 Ah x 1
- Recharge time
- 6 - 8 h
- USB (optional)
- Supports Windows 98 / 2000 / 2003 / XP / Vista / 2008 / Windows?7 / 8 / 10
- Protections
- Short circuit - battery overcharge , overdischarge , overload - surge
- Humidity
- 20 - 90% RH @ 0- 40 (non-condensing)
- Noise level
- <= 40 dB (1 m)
- Plastic Case
- Net / Gross weight (kg) 4.2 / 4.6, Dimensions 90 x 305 x 165, Packaged dimensions: 133 x 349 x 232, Quantity /20ft 2300 pcs

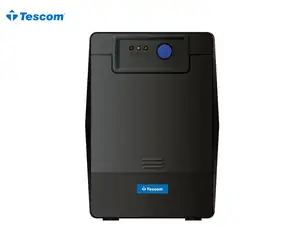

UPS 850VA TESCOM LEO LED 850A NEW
Διαθέσιμο
- Κωδικός
- 0.501.662
- Κατηγορία
- Tescom UPS
- Voltage
- 100 / 110 / 120 V: 80 - 150 Vac, 220 / 230 / 240 V: 162 -295 Vac (145 -295 Vac optional)
- Frequency
- 50 / 60 Hz + - 10% (auto-sensing)
- Voltage
- 100 / 110 / 120 Vac + - 10% or 220 / 230 / 240 Vac + - 10%
- Frequency
- 50 / 60 Hz+ - 1% (auto-sensing)
- Waveform
- Mains mode: pure sine wave Battery mode: simulated sine wave
- Transfer time
- Typical 2 -7 ms, 10 ms max.
- DC voltage
- 12 V
- Configuration
- 12 V / 9 Ah x 1
- Recharge time
- 6 - 8 h
- USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows?7 / 8 / 10
- Protections
- hort circuit - battery overcharge - overdischarge - overload - surge
- Humidity
- 20 -90% RH @ 0 - 40 (non-condensing)
- Noise level
- <= 40 dB (1 m)
- Plastic Case
- Net / Gross weight (kg) 5.0 / 5.4, Dimensions 90 ? 305 ? 165, Packaged dimensions: 133 x 349 x 232, Quantity /20ft 2300 pcs
BATTERY PACK APC SUA24XLBP T/B (NEW)
Περιορισμένα τεμάχια
- Κωδικός
- 0.081.028
- Κατηγορία
- Batteries
- Type
- N/A
- Form Factor
- Tower
- Power Output Connectors
- N/A
- Power Capacity
- N/A
- Interface
- N/A
- Run Time (Up To)
- N/A
- Dimensions
- 170 x 439 x 216 mm
- Weight
- 31.36 KG
UPS APC Back-UPS Pro BR24BPG External Battery Pack NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.500.572
- Κατηγορία
- Battery Pack
- Type
- N/A
- Form Factor
- Tower
- Power Output Connectors
- N/A
- Power Capacity
- 18000 mAh
- Interface
- N/A
- Run Time (Up To)
- N/A
- Dimensions
- 30.1 x 11.2 x 38.2 CM
- Weight
- 14.57KG
UPS 2000VA 1102SRT TESCOM NEOLINE SRT PRO 2KVA/1800W NEW
Διαθέσιμο
- Κωδικός
- 0.502.044
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 / 220 / 230 / 240 Vac
- Voltage range
- "110 -176 Vac (linear derating between 50% and 100% load), 176 - 280 Vac (no derating), 280 - 300 Vac (derating50%)"
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- - 25% + 15% settableTotal Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 / 220 / 230 / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Frequency
- 45 - 55 Hz or 55 - 65 Hz (synchronized range); 50 / 60 Hz + - 0.1 Hz (battery mode)
- Waveform
- Sinusoidal
- Power factor
- 0.9
- Total harmonic distortion (THDv)
- <= 2% (linear load), <= 5% (non-linear load
- Crest factor
- 3:1
- Overload
- 105% - 125% for 1 min, 125% - 150% for 30 s, > 150% for 300 ms
- DC voltage
- 48 V (S)
- Inbuilt battery
- 4 x 9 Ah
- Charging current (max.)
- 1A
- Recharge time
- Standard model: 90% capacity restored in 4 hours, Long time model: depend on the capacity of battery
- Efficiency
- >= 90% (Mains mode), >= 85% (Battery mode), >= 95% (ECO mode)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Protections
- Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
- Communications
- RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
- Display
- LCD + LED
- Standards
- "EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1"
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -25 to 55 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000 m, derating 1% for each additional 100 m
- IP rating
- IP 20
- Noise level at 1m
- <= 50 Db
- Dimensions
- 440 x 430 x 88
- Packaged dimensions
- 545 x 560 x 201
- Net weight (kg)
- 18.7
- Gross weight (kg)
- 21.8

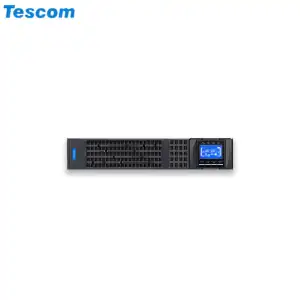

UPS 1103SRT TESCOM NEOLINE SRT PRO 3KVA/2700W NEW
Περιορισμένα τεμάχια
- Κωδικός
- 0.502.045
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 / 220 / 230 / 240 Vac
- Voltage range
- "110 -176 Vac (linear derating between 50% and 100% load), 176 - 280 Vac (no derating), 280 - 300 Vac (derating50%)"
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- - 25% + 15% settableTotal Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 / 220 / 230 / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Frequency
- 45 - 55 Hz or 55 - 65 Hz (synchronized range); 50 / 60 Hz + - 0.1 Hz (battery mode)
- Waveform
- Sinusoidal
- Power factor
- 0.9
- Total harmonic distortion (THDv)
- <= 2% (linear load), <= 5% (non-linear load
- Crest factor
- 3:1
- Overload
- 105% - 125% for 1 min, 125% - 150% for 30 s, > 150% for 300 ms
- DC voltage
- 72 V (S)
- Inbuilt battery
- 6 x 9 Ah
- Charging current (max.)
- 1A
- Recharge time
- Standard model: 90% capacity restored in 4 hours, Long time model: depend on the capacity of battery
- Efficiency
- >= 92% (Mains mode), >= 87% (Battery mode), >= 97% (ECO mode)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Protections
- Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
- Communications
- RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
- Display
- LCD + LED
- Standards
- "EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1"
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -25 to 55 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000 m, derating 1% for each additional 100 m
- IP rating
- IP 20
- Noise level at 1m
- <= 50 Db
- Dimensions
- 440 x 560 x 88
- Packaged dimensions
- 545 x 690 x 201
- Net weight (kg)
- 26.8
- Gross weight (kg)
- 29.7
UPS 650VA TESCOM LEO PLUS LED 650A W/O PORT NEW
Αναμένεται
- Κωδικός
- 0.502.038
- Κατηγορία
- Tescom UPS
- Voltage
- 100 / 110 / 120 V: 80 - 150 Vac, 220 / 230 / 240 V: 162 -295 Vac (145 -295 Vac optional)
- Frequency
- 50 / 60 Hz + - 10% (auto-sensing)
- Voltage
- 100 / 110 / 120 Vac + - 10% or 220 / 230 / 240 Vac + - 10%
- Frequency
- 50 / 60 Hz+ - 1% (auto-sensing)
- Waveform
- Mains mode: pure sine wave Battery mode: simulated sine wave
- Transfer time
- Typical 2 -7 ms, 10 ms max.
- DC voltage
- 12 V
- Configuration
- 12 V / 7 Ah x 1
- Recharge time
- 6 - 8 h
- USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows?7 / 8 / 10
- Protections
- hort circuit - battery overcharge - overdischarge - overload - surge
- Humidity
- 20 -90% RH @ 0 - 40 (non-condensing)
- Noise level
- <= 40 dB (1 m)
- Plastic Case
- Net / Gross weight (kg) 4.2 / 4.6, Dimensions 90 x 305 x 165, Packaged dimensions: 133 x 349 x 232, Quantity /20ft 2300 pcs
UPS 850VA TESCOM LEO PLUS LCD 850AP NEW
Αναμένεται
- Κωδικός
- 0.501.495
- Κατηγορία
- Tescom UPS
- Voltage
- 100 / 110 / 120 V: 80 - 150 Vac, 220 / 230 / 240 V: 162 - 295 Vac (145 - 295 Vac optional)
- Frequency
- 50 / 60 Hz + - 10% (auto-sensing)
- Voltage
- 100 / 110 / 120 Vac + - 10% or 220 / 230 / 240 Vac + - 10%
- Frequency
- 50 / 60 Hz + - 1% (auto-sensing)
- Waveform
- Mains mode: pure sine wave Battery mode: simulated sine wave
- Transfer time
- Typical 2 - 7 ms, 10 ms max.
- DC voltage
- 12 V
- Configuration
- 12 V / 9 Ah x 1
- Recharge time
- 6 - 8 h
- USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows?7 / 8 / 10
- Protections
- Short circuit - battery overcharge - overdischarge - overload - surge
- Humidity
- 20 - 90% RH @ 0- 40 (non-condensing)
- Noise level
- <= 40 dB (1 m)
- Plastic Case
- Net / Gross weight (kg) 5.0 / 5.4, Dimensions 90 ? 305 ? 165, Packaged dimensions: 133 x 349 x 232, Quantity /20ft 2300 pcs
UPS 1200VA TESCOM LEO PLUS LCD 1200AP NEW
Αναμένεται
- Κωδικός
- 0.502.039
- Κατηγορία
- Tescom UPS
- Voltage
- 100 / 110 / 120 V: 80 - 150 Vac, 220 / 230 / 240 V: 162 - 295 Vac (145 - 295 Vac optional)
- Frequency
- 50 / 60 Hz + - 10% (auto-sensing)
- Voltage
- 100 / 110 / 120 Vac + - 10% or 220 / 230 / 240 Vac + - 10%
- Frequency
- 50 / 60 Hz + - 1% (auto-sensing)
- Waveform
- Mains mode: pure sine wave Battery mode: simulated sine wave
- Transfer time
- Typical 2 - 7 ms, 10 ms max.
- DC voltage
- 24 V
- Configuration
- 12 V / 7 Ah x 2
- Recharge time
- 6 - 8 h
- USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows?7 / 8 / 10
- Protections
- Short circuit - battery overcharge - overdischarge - overload - surge
- Humidity
- 20 - 90% RH @ 0- 40 (non-condensing)
- Noise level
- <= 40 dB (1 m)
- Plastic Case
- Net / Gross weight (kg) 9.4 / 9.9, Dimensions 115 x 320 x 220, Packaged dimensions: 161 x 369 x 290, Quantity /20ft 1400 pcs
UPS 1500VA TESCOM LEO PLUS LCD 1500AP NEW
Αναμένεται
- Κωδικός
- 0.500.950
- Κατηγορία
- Tescom UPS
- Voltage
- 100 / 110 / 120 V: 80 - 150 Vac, 220 / 230 / 240 V: 162 - 295 Vac (145 - 295 Vac optional)
- Frequency
- 50 / 60 Hz + - 10% (auto-sensing)
- Voltage
- 100 / 110 / 120 Vac + - 10% or 220 / 230 / 240 Vac + - 10%
- Frequency
- 50 / 60 Hz + - 1% (auto-sensing)
- Waveform
- Mains mode: pure sine wave Battery mode: simulated sine wave
- Transfer time
- Typical 2 - 7 ms, 10 ms max.
- DC voltage
- 24 V
- Configuration
- 12 V / 9 Ah x 2
- Recharge time
- 6 - 8 h
- USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows?7 / 8 / 10
- Protections
- Short circuit - battery overcharge - overdischarge - overload - surge
- Humidity
- 20 - 90% RH @ 0- 40 (non-condensing)
- Noise level
- <= 40 dB (1 m)
- Plastic Case
- Net / Gross weight (kg) 9.8 / 10.3, Dimensions 115 x 320 x 220, Packaged dimensions: 161 x 369 x 290, Quantity /20ft 1400 pcs
UPS 2000VA TESCOM LEO PLUS LCD 2000AP NEW
Αναμένεται
- Κωδικός
- 0.500.869
- Κατηγορία
- Tescom UPS
- Voltage
- 100 / 110 / 120 V: 80 - 150 Vac, 220 / 230 / 240 V: 162 - 295 Vac (145 - 295 Vac optional)
- Frequency
- 50 / 60 Hz + - 10% (auto-sensing)
- Voltage
- 100 / 110 / 120 Vac + - 10% or 220 / 230 / 240 Vac + - 10%
- Frequency
- 50 / 60 Hz + - 1% (auto-sensing)
- Waveform
- Mains mode: pure sine wave Battery mode: simulated sine wave
- Transfer time
- Typical 2 - 7 ms, 10 ms max.
- DC voltage
- 24 V
- Configuration
- 12 V / 9 Ah x 2
- Recharge time
- 6 - 8 h
- USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows?7 / 8 / 10
- Protections
- Short circuit - battery overcharge - overdischarge - overload - surge
- Humidity
- 20 - 90% RH @ 0- 40 (non-condensing)
- Noise level
- <= 40 dB (1 m)
- Metal Case
- Net / Gross weight (kg) 12.9 / 13.3, Dimensions 25 x 380 x 225, Packaged dimensions: 161 x 369 x 290, Quantity /20ft 1000 pcs
UPS TESCOM 1101ST NEOLINE ST PRO 1KVA / 900W NEW
Αναμένεται
- Κωδικός
- 0.502.040
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 V / 220 V / 230 V / 240 Vac
- Voltage range
- 110 - 176 Vac (linear derating between 50% and 100% load ), 176 - 280 Vac (no derating), 280 - 300 Vac (derating 50%)
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- 25% +15% (settable)Total Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 V / 220 V / 230 V / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Waveform
- Sinusoidal
- Crest factor
- <= 2% (linear load); <= 5% (non-linear load)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Overload capability
- 105% - 125%: transfer to bypass in 1 min, 125% - 150%: transfer to bypass in 30 s, > 150%: transfer to bypass in 300 ms
- Mains mode
- >= 90%
- Battery mode
- >= 85%
- ECO mode
- >= 95%
- DC voltage
- 24 V
- Inbuilt battery
- 2 x12v 9Ah
- Charging current (max.)
- 1A
- Recharge time
- 8 h
- TYPE
- VRLA sealed lead acid maintenance free
- ALARMS
- On Utility failure / Low battery / Overload / UPS fault
- RS232 (standard) / USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows? 7 / 8 / 10
- SNMP (optional)
- Power management from SNMP manager and web browser
- Output Power Plugs
- 2 Schuko (3 IEC optional)
- Operating temperature
- 0 - 40
- Storage temperature
- from -40 to 70 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000m, derating 1% for each additional 100m
- IP rating
- IP20
- Noise level
- <= 50 dB (1m)
- Dimensions
- 144x336x214
- Packaged dimensions
- 232x417x318
- Net weight (kg)
- 9.5
UPS 1101SRT TESCOM NEOLINE SRT PRO 1KVA/900W NEW
Αναμένεται
- Κωδικός
- 0.502.043
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 V / 220 V / 230 V / 240 Vac
- Voltage range
- "110 -176 Vac (linear derating between 50% and 100% load), 176 - 280 Vac (no derating), 280 - 300 Vac (derating50%)"
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- - 25% + 15% settableTotal Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 / 220 / 230 / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Frequency
- 45 - 55 Hz or 55 - 65 Hz (synchronized range); 50 / 60 Hz + - 0.1 Hz (battery mode)
- Waveform
- Sinusoidal
- Power factor
- 0.9
- Total harmonic distortion (THDv)
- <= 2% (linear load), <= 5% (non-linear load
- Crest factor
- 3:1
- Overload
- 105% - 125% for 1 min, 125% - 150% for 30 s, > 150% for 300 ms
- DC voltage
- 24 V (S)
- Inbuilt battery
- 2 x 9 A
- Charging current (max.)
- 1A
- Recharge time
- Standard model: 90% capacity restored in 4 hours, Long time model: depend on the capacity of battery
- Efficiency
- >= 90% (Mains mode), >= 85% (Battery mode), >= 95% (ECO mode)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Protections
- Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
- Communications
- RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
- Display
- LCD + LED
- Standards
- EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -25 to 55 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000 m, derating 1% for each additional 100 m
- IP rating
- IP 20
- Noise level at 1m
- <= 50 Db
- Dimensions
- 440 x 338 x 88
- Packaged dimensions
- 545 x 428 x 194
- Net weight (kg)
- 10.6
- Gross weight (kg)
- 11.3
UPS 1102ST TESCOM NEOLINE ST PRO 2KVA / 1800W NEW
Αναμένεται
- Κωδικός
- 0.502.041
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 V / 220 V / 230 V / 240 Vac
- Voltage range
- 110 - 176 Vac (linear derating between 50% and 100% load ), 176 - 280 Vac (no derating), 280 - 300 Vac (derating 50%)
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- 25% +15% (settable)Total Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 V / 220 V / 230 V / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Waveform
- Sinusoidal
- Crest factor
- 3:01
- Harmonic distortion
- <= 2% (linear load); <= 5% (non-linear load)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Overload capability
- 105% - 125%: transfer to bypass in 1 min, 125% - 150%: transfer to bypass in 30 s, > 150%: transfer to bypass in 300 ms
- Mains mode
- >= 91%
- Battery mode
- >= 86%
- ECO mode
- >= 96%
- DC voltage
- 48 V
- Inbuilt battery
- 4 x 12v 9Ah
- Charging current (max.)
- 1A
- Recharge time
- 8 h
- TYPE
- VRLA sealed lead acid maintenance free
- ALARMS
- On Utility failure / Low battery / Overload / UPS fault
- RS232 (standard) / USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows? 7 / 8 / 10
- SNMP (optional)
- Power management from SNMP manager and web browser
- Output Power Plugs
- 3 Schuko (3 IEC optional)
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -40 to 70 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000m, derating 1% for each additional 100m
- IP rating
- IP20
- Noise level
- <= 50 dB (1m)
- Dimensions
- 191x418x335
- Packaged dimensions
- 318x533x471
- Net weight (kg)
- 18
UPS 1103ST TESCOM NEOLINE ST PRO 3KVA / 2700W NEW
Αναμένεται
- Κωδικός
- 0.502.042
- Κατηγορία
- Tescom UPS
- Rated voltage
- 208 V / 220 V / 230 V / 240 Vac
- Voltage range
- 110 - 176 Vac (linear derating between 50% and 100% load ), 176 - 280 Vac (no derating), 280 - 300 Vac (derating 50%)
- Frequency
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- 25% +15% (settable)Total Harmonic Distortion (THDi) <= 6%
- Voltage
- 208 V / 220 V / 230 V / 240 Vac (settable via LCD)
- Voltage regulation
- 1 +-
- Frequency
- 45- 55 Hz or 55 - 65 Hz (synchronized range), 50 / 60 Hz + - 0.1 Hz (battery mode)
- Waveform
- Sinusoida
- Crest factor
- 3:01
- Harmonic distortion
- <= 2% (linear load); <= 5% (non-linear load)
- Transfer time
- Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
- Overload capability
- 105% - 125%: transfer to bypass in 1 min, 125% - 150%: transfer to bypass in 30 s, > 150%: transfer to bypass in 300 ms
- Mains mode
- >= 92%
- Battery mode
- >= 87%
- ECO mode
- >= 97%
- DC voltage
- 72 V
- Inbuilt battery
- 6 x 12v 9Ah
- Charging current (max.)
- 1A
- Recharge time
- 8 h
- TYPE
- VRLA sealed lead acid maintenance free
- ALARMS
- On Utility failure / Low battery / Overload / UPS fault
- RS232 (standard) / USB (optional)
- Supports Windows? 98 / 2000 / 2003 / XP / Vista / 2008 / Windows? 7 / 8 / 10
- SNMP (optional)
- Power management from SNMP manager and web browser
- Output Power Plugs
- 4 Schuko (6 IEC optional)
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -40 to 70 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000m, derating 1% for each additional 100m
- IP rating
- IP20
- Noise level
- <= 50 dB (1m)
- Dimensions
- 191x464x335
- Packaged dimensions
- 320x573x471
- Net weight (kg)
- 32
UPS 1106ST TESCOM PRIME ST PRO 6KVA/6000W LC NEW
Αναμένεται
- Κωδικός
- 0.502.046
- Κατηγορία
- Tescom UPS
- Input wiring
- Single-phase three-wire
- Rated voltage
- 208 / 220 / 230 / 240 Vac
- Voltage range
- 110 - 176 Vac (linear derating between 50% and 100% load), 176 - 288 Vac (no derating)
- Rated frequency
- 50 / 60 Hz (auto-sensing)
- Frequency range
- 40 - 70 Hz (auto-sense)
- Power factor
- >= 0.99
- Bypass voltage range
- (- 40%, +15%) (settable)Total Harmonic Distortion (THDi) <= 5%
- Output wiring
- Single-phase three-wire
- Voltage rated
- 208 (PF=0.9) / 220 / 230 / 240 Vac
- Voltage regulation
- 1 +-
- Frequency
- Synchronized to bypass in mains mode; 50 / 60 Hz ± 0.1% Hz in battery mode
- Waveform
- Sinusoidal
- Power factor
- 1
- Total harmonic distortion (THDv)
- <= 1% (linear load, <= 4% (non-linear load)
- Crest factor
- 3:1
- Overload
- 105% - 110% for 10 min, 110% - 125% for 1 min,126% - 150% for 30 s
- DC voltage
- 192 Vdc (192 - 240 Vdc settable)
- Number of battery
- 16 - 20
- Inbuilt battery (standard model)
- 12 V / 7 Ah x 16
- Charging current
- 1A
- Recharge time
- Standard model: 90% capacity restored in 8 hours
- Efficiency
- >= 94% at 100% load, max. 95% at 60% load, >= 98% in ECO mode
- Transfer time
- 0 ms
- Protections
- Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure
- Max. number of parallel connections
- 4
- Communications
- RS232 (standard), USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional)
- Display
- LCD + LED
- Operating temperature
- 0 - 40°C
- Storage temperature
- from -25 to 55 °C (without batteries)
- Relative Humidity
- 0 - 95% (non-condensing)
- Altitude
- <= 1000 m, derating 1% for each additional 100 m
- IP rating
- IP 20
- Noise level at 1m
- <= 55 Db
- Dimensions
- 191 x 465 x 711
- Packaged dimensions
- 310 x 654 x 941
- Net weight (kg)
- 53
- Gross weight (kg)
- 61
