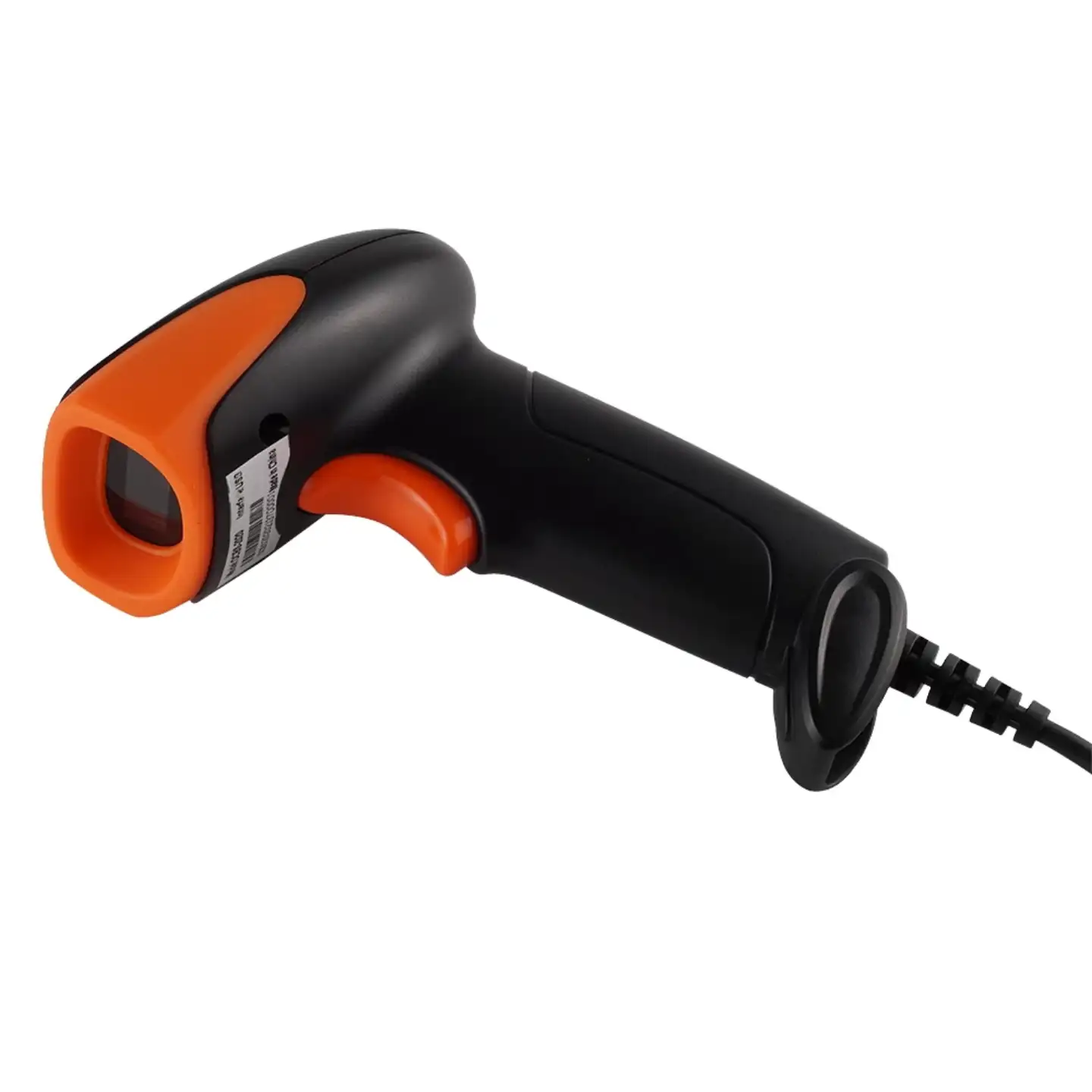

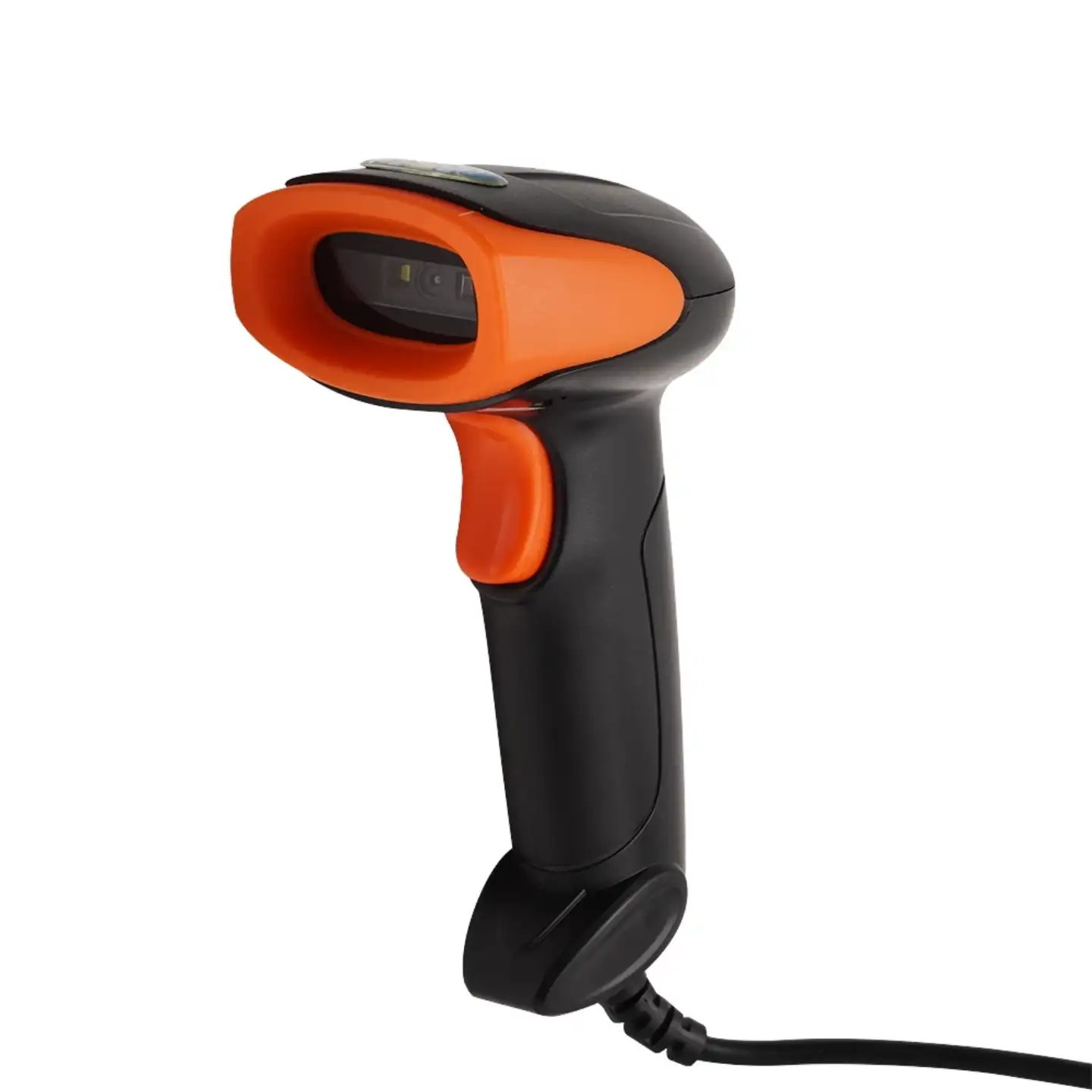

Model OCBS-2020
Color Black
Material ABS+PC
Processor 32-bit ARM MCU + DSP
Interface USB; USB virtual COM; RS232
Prompt mode Buzzer, indicator(LED)
IP grade IP42
Power consumption 375mW(Working);226mW(standy);750mW(Max)
Power supply DC 5V ±5%
OS support Linux Android Windows XP 7 8 10?MAC
Sensor CMOS sensor
Light source Red LED(Aiming)+White LED(Lighting)
Resolution 4mil PCS90%,CODE 39?
Error rate 1/5 million
Motion Tolerance 25cm/s
Reading Mode Image
Trigger mode Manual,Continuous scanning,Auto-sensing
ESD Protection 15KV air discharge
Shock resistance 1.5m free fall on concrete surface
printing contrast 25%
Barcodes1D:Code25-Interleaved , Code25-Standard , Code25-Matrix , Code39-Regular, Code39-FullASCII, Code32, Code93-Regular, Code93-FullASCII, Code128, EAN/GSL/UCC-128Auto, ,Codabar,MSI ,EAN/JAN-13,UPC-A,JAN-8,UPCE,2D:PDF417, QR, Data Matrix
Reading depthCode39 4.17mil(15bytes):4cm-8cm, Code128 4.17mil(16bytes):7cm-15cm, Data Matrix 10.83mil(8 bytes):3cm-9cm, Code QR 10.83mil(8 bytes):1cm-19cm
Scanning Angle Roll360°,Pitch30°,Yaw45°
Working temperature& humidity 0 to 45 degrees centigrade, 10%~80% No condensation
Storage temperature& humidity -20 to 60 degrees centigrade , 10%~90% No condensation
