INPUT
Nominal Voltage 3 x 400 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N)
Voltage range 190-520 VAC (3-phase) 50% load 305-478 VAC (3-phase) 100% load
Frequency range 46~54 Hz or 56~64Hz
Power factor 0.99 100% load
OUTPUT
Output Voltage 3 x 360*/380/400/415 VAC (3Ph+N) or 208*/220/230/240 VAC (Ph-N)
AC Voltage Regulation - + 1
Frequency Range 46~54Hz or 56~64Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion <=2 % THD (Linear Load), <= 5 % THD (Non-linear Load)
Transfer Time AC mode to Battery mode= Zero, Inverter to Bypass= Zero
Waveform Pure Sine Wave
Overload AC Mode 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately, Battery Mode 100-110% for 60 min, 110-125% for 10 min, 125%~150% for 1 min; >150% immediately
EFFICIENCY
AC Mode 95.5%
ECO Mode 98.5%
Battery Mode 94.5%
BATTERIES
Battery Type Depending on the applications
Numbers 20 pcs
Charging Current 1A ~ 12A (Adjustable)
Charging Voltage +/-13.65 VDC x N (N=10)
PHUSICAL

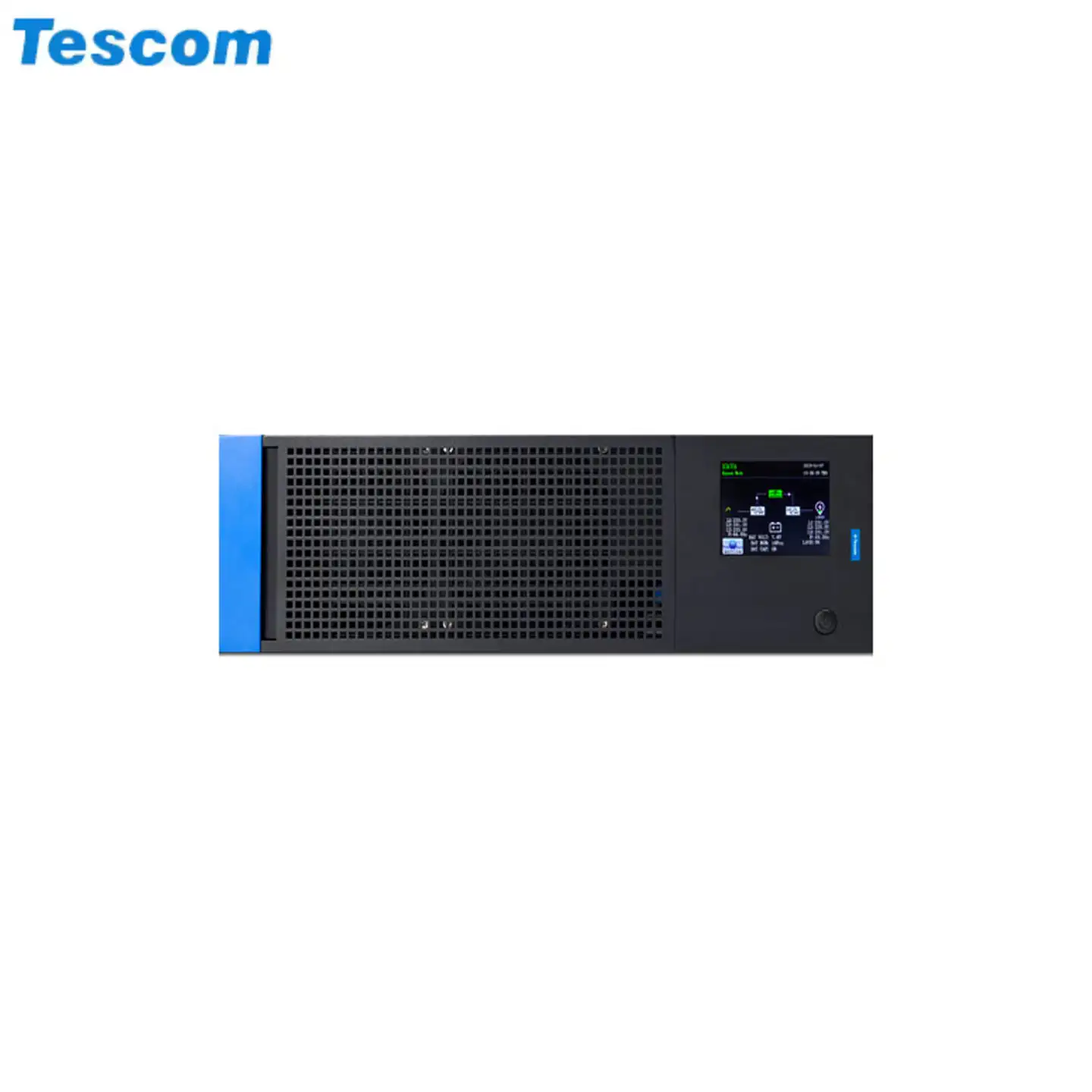

Standard Model Dimension, (mm) 680 x 438 x 133 [3U]
Net Weight 26
ENVIRONMENT
Operation Temperture 0-40C
Operation Humidity <95% and non-condersing
Noise Level Less than 62dB 1 Meter
MANAGMENT
Smart RS-232/USB & Softwarel Supports Windows family, Linux and MAC
Optional SNMPl Power management from SNMP manager and web browser
