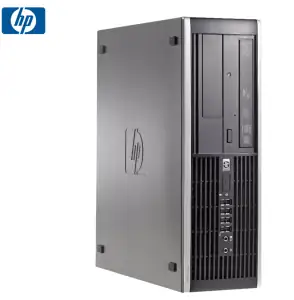

HP Elite 8200 SFF Core i3 2nd Gen
Available
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel Q67
- Processors
- Intel Core i3,i5,i7, Intel Pentium
- Memory Support
- Four (4) DIMM slots , Up to 32 GB DDR3 1333 MHz SDRAM
- Hard Drive
- Up to 1 TB 7200 rpm
- Removable Media
- DVD-ROM/ DVD-ReWritable
- Expansion Bays
- External: One (1) 5.25-inch, One (1) 3.5-inch Internal: One (1) 3.5-inch
- Expansion Slots
- One (1) LP PCI, Two (2) LP PCI-E x16 (1 wired x4), One (1) LP PCI-E x1
- Graphics
- Intel HD Graphics 2000/3000 (integrated)
- Audio
- Realtek ALC261 codec
- Communications
- Intel 82579LM integrated GbE Network Connection
- I/O Ports
- Front: Four (4) USB 2.0, Audio I/O, Rear: Six (6) USB 2.0, Serial, VGA, DP,RJ-45, Two (2) PS/2, Audio I/O
- Input Devices
- Standard Keyboard (PS/2 or USB)
- Power
- 240 W
- Dimensions
- 37.9 cm 33.8 cm x 10.0 cm
- Weight
- 7.6 kg
HP ProDesk 600 G1 SFF Core i3 4th Gen
Available
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel Q85
- Processors
- Intel 4th Gen Core i3,i5,i7, Intel Pentium, Intel Celeron
- Memory Support
- Four (4) DIMM slots , Up to 32 GB DDR3 SDRAM, 1600MHz
- Hard Drive
- Up to 1TB 7200 rpm
- Removable Media
- DVD-ROM/ DVD-ReWritable (slim)
- Expansion Bays
- External: One (1) 3.5-inch Internal: One (1) 3.5-inch, One (1) 2.5-inch
- Expansion Slots
- One (1) LP PCI Express x16s, Three (3) LP PCI Express x1
- Graphics
- Intel HD Graphics
- Audio
- Realtek ALC221 codec
- Communications
- Intel I217LM GbE Network Connection
- I/O Ports
- Front: Two (2) USB 3.0, Two (2) USB 2.0, Audio I/O, Rear: Two (2) USB 3.0, Two (2) USB 2.0, VGA, DP, Audio I/O
- Input Devices
- Standard Keyboard (USB)
- Power
- 240 W
- Dimensions
- 38.05 cm x 33.7 cm x 10 cm
- Weight
- 7.6 kg
HP Elite 8300 SFF Core i3 2nd & 3rd Gen
Limited items
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel Q77
- Processors
- Intel Pentium, Core i3 2nd & 3rd Gen
- Memory Support
- Four (4) DIMM slots , Up to 32 GB DDR3 1600MHz
- Hard Drive
- SATA III, 7.200rpm up to 1TB or SSD up to 256GB
- Removable Media
- SATA DVD-ROM drive, SATA DVD Writer Drive, SATA Blu-ray Writer Drive
- Expansion Bays
- External: One (1) 5.25-inch, One (1) 3.5-inch Internal: One (1) 3.5-inch
- Expansion Slots
- One (1) PCI LP, One (1) PCI Express x1 LP, One (1) PCI Express x16 (wired as 4) LP, One (1) PCI Express x16 LP
- Graphics
- Intel HD Graphics
- Audio
- HD audio with Realtek ALC221
- Communications
- Intel 82579LM Gigabit Ethernet Connection
- I/O Ports
- Rear: (4) USB 3.0, (2) USB 2.0, Serial , Two (2) PS/2, Audio I/O, VGA, DP,RJ-45 Front: (4) USB 2.0, Audio I/O
- Power
- 240W
- Dimensions
- 37.9 x 33.8 x 10 cm
- Weight
- 7.6 kg
Viglen VIG690M SFF Core i3 4th Gen
Limited items
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel H81
- Processors
- Intel 4th Gen Core i3,i5,i7, Intel Pentium
- Memory Support
- Two (2) DIMM slots , Up to 16 GB DDR3, 1600MHz
- Hard Drive
- SATA3 HDD or SSD
- Removable Media
- DVD-ROM/DVD-RW
- Expansion Bays
- N/A
- Expansion Slots
- One (1) x PCI Express 2.0 x16 (LP), One (1) x PCI Express 2.0 x1 (LP)
- Graphics
- Intel Graphics Media Accelerator HD
- Audio
- Realtek? ALC887 HD Audio
- Communications
- Realtek RTL8111G Gigabit Ethernet Controller
- I/O Ports
- 4 x USB 2.0, 2 x USB 3.0, DVI-D, VGA, 2 x PS/2, RJ-45
- Power
- N/A
- Dimensions
- N/A
- Weight
- N/A
HP EliteDesk 800 G3 SFF Core i3 6th & 7th Gen
Available
- Category
- SFF
- Operating System
- Windows 7 Home & Pro. MAR, Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel Q270
- Processors
- Intel Core i3, i5, i7 6th & 7th Gen
- Memory Support
- Four (4) DIMM slots , Up to 64 GB DDR4 - 2400
- Hard Drive
- M.2, Sata III or SSD
- Removable Media
- Optional
- Expansion Bays
- Internal: One (1) 2.5-inch. Two (2) 3.5-inch - External: One (1) 5.24-inch Slim Line
- Expansion Slots
- One (1) M.2 PCIe x1-2230(x1 mode), One (1) M.2 PCIe x4-2280, Two (2) PCIe 3.0 x1 (LP), One (1) PCIe 3.0 x16 (LP - x4 mode), One (1) PCIe 3.0 x16 (LP)
- Graphics
- Intel HD Graphics 530
- Audio
- High Definition Audio
- Communications
- Intel I219LM Gigabit Ethernet Port
- I/O Ports
- Front: Two (2) USB 2.0, Two (2) USB 3.1 (including 1 fast charging), One (1) USB Type-C, Audio I/O Rear: Four (4) USB 3.0, Two (2) USB 2.0, Two (2) DP, RJ-45, Audio I/O
- Power
- 180 W
- Dimensions
- 38.8 x 10 x 30 cm
- Weight
- 5.31 kg
Fujitsu Esprimo D556 SFF Core i3 6th & 7th Gen
Available
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel H110
- Processors
- Intel Core i5 6th Gen
- Memory Support
- 2 DIMM (DDR4) , Up to 16 GB DDR4 SDRAM
- Hard Drive
- SATA III up to 512 GB
- Removable Media
- DVD
- Expansion Bays
- 1 3.5-inch internal bays, 1 3.5-inch external bays, 1 5.25-inch external bays
- Expansion Slots
- PCI-Express 3.0 x16, PCI-Express 2.0 x4, PCI-Express x1
- Graphics
- Intel HD Graphics 510, Intel HD Graphics 530
- Audio
- Realtek ALC671 codec
- Communications
- 1 x Ethernet (RJ-45)
- I/O Ports
- 4 x USB 3.0 total, 6 x USB 2.0 total, 2x USB 2.0: 2x USB 3.0 x USB front, 2x USB 2.0: 2x USB 3.0 x USB rear, 2x USB 2.0 x USB internal, optional: via adapter card x VGA,1 x Ethernet (RJ-45),1 DVI, 1 x DisplayPort
- Power
- power supply efficiency (at 230V; 10% / 20% / 50% / 100% load) : 75% / 83% / 85% / 84%
- Dimensions
- 332 x 338 x 89 mm
- Weight
- 8 kg
Fujitsu Esprimo D756 SFF Intel Core i3 6th
Available
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel Q150
- Processors
- Intel 6th generation Core i7, i5, i3, Pentium G
- Memory Support
- Four (4) DIMM slots , Up to 64 GB DDR4 2133 MHz SDRAM
- Hard Drive
- SATA III HDD or SSD, M.2 SSD
- Removable Media
- (optional) DVD-ROM, DVD Super Multi, BD Triple Writer SATA slim (tray)
- Expansion Bays
- External: One (1) 5.25-inch, One (1) 3.5-inch, Internal: One (1) 3.5-inch
- Expansion Slots
- One (1) LP PCI-e 3.0 x16, One (1) LP PCI-e 2.0 x4, Two (2) LP PCI-e 2.0 x1
- Graphics
- Intel HD Graphics
- Audio
- Realtek ALC671
- Communications
- 10/100/1,000 MBit/s Intel I219V
- I/O Ports
- Front: Two (2) USB 2.0, Two (2) USB 3.0 microphone, headphone Rear: Two (2) USB 2.0, Four (4) USB 3.0, Two (2) DisplayPort, DVI-D, Audio I/O
- Power
- 280 watts 84% active PFC
- Dimensions
- 332 x 338 x 89 mm
- Weight
- 8 kg

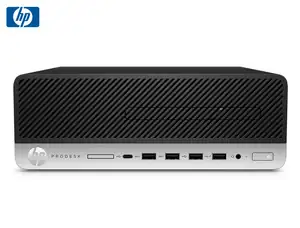

HP Prodesk 600 G3 SFF Core i3 6th & 7th Gen
Limited items
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR
- Chipset
- Intel Q270
- Processors
- Intel 6th & 7th Gen Core i3, i5, i7, Intel Pentium G, Intel Celeron G
- Memory Support
- Four (4) SODIMM slots , Up to 64 GB DDR4-2400
- Hard Drive
- SATA 7200 rpm or SSD, PCIe NMVe TLC SSD
- Removable Media
- HP 9.5 mm, G3 600 SFF DVD-Writer or HP 9.5 mm, G3 600 SFF DVD-ROM
- Expansion Bays
- Internal: One (1) 2.5-inch, One (1) 3.5-inch, External: One (1) slim ODD, One (1) SD Card Reader
- Expansion Slots
- One (1) Turbo Drive M.2 PCIe x1-2230, One (1) Turbo Drive M.2 PCIe x4-2280, Two (2) PCI Express x16 (v3.0); 1 wired as an x4
- Graphics
- Intel HD Graphics
- Audio
- Conexant CX20632 codec
- Communications
- Realtek RTL8201N FtE
- I/O Ports
- Front: Two (2) USB 2.0, Two (2) USB 3.1, One (1) USB Type C 3.1Audio I/O, Rear: Four (4) USB 3.1, Two (2) USB 2.0 Audio I/O, Two (2) DP, RJ-45
- Power
- 80 PLUS Bronze 180W active PFC or 80 PLUS Platinum 180W active PFC
- Dimensions
- 269.24 x 93.98 x 297.18 mm
- Weight
- 4.53 kg
HP EliteDesk 800 G4 SFF Core i3 8th Gen
Limited items
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Windows 11 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel Q370
- Processors
- Intel Celeron, Intel Pentium, Intel Core i3, i5, i7 8th Gen
- Memory Support
- Four (4) DIMM slots , Up to 64 GB DDR4 - 2666
- Hard Drive
- M.2, Sata III or SSD
- Removable Media
- Optional
- Expansion Bays
- 2.5in; (2x) 3.5in; 5.25in (slim);
- Expansion Slots
- PCIe 3.0 x16; (2x) PCIe 3.0 x1; PCIe 3.0 x16 (wired x4);wireless NIC, One (1) M.2 2280 for storage drives
- Graphics
- Intel HD Graphics
- Audio
- HD Audio
- Communications
- Gigabit Ethernet
- I/O Ports
- (2x) USB-C 3.1; (2x) USB-A 3.1; (3x) USB-A 3.2; (4x) USB-A 2.0; (2x) DisplayPort; RJ45; Headset; Line-Out; Line-In; RJ45
- Power
- 250 W active PFC
- Dimensions
- 100.08 x 337.82 x 308.10 mm
- Weight
- 8.99 kgkg
Lenovo M920 SFF Core i3 8th Gen
Limited items
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel Q370
- Processors
- Intel Core i3, i5, i7 8th & 9th generation
- Memory Support
- Up to 16GB UDIMM DDR4
- Hard Drive
- SATA, SSD, SSD M2
- Graphics
- Intel UHD Graphics 630
- Audio
- Realtek ALC233VB2 codec
- Communications
- Integrated 100/1000M
- I/O Front Ports
- 2x USB 3.1 Gen 1, 1x microphone (3.5mm), 2x USB 3.1 Gen 2, 1x headphone / microphone combo jack (3.5mm), 1x USB-C 3.1 Gen 1
- I/O Rear Ports
- 1x Ethernet (RJ-45), 1x serial (9-pin), 1x VGA, 2x DisplayPort, 4x USB 3.1 Gen 1, 1x line-out (3.5mm)
- Power
- 210W
- Dimensions
- 92.5 x 290.5 x 343.5 mm
- Weight
- 6.0 kg25cm, 6kgr
Lenovo M720 SFF Core i3 8th Gen
Available
- Category
- SFF
- Operating System
- Windows 10 Home & Pro MAR, Ubuntu Linux, Free DOS
- Chipset
- Intel 630
- Processors
- Intel Core i3, i5, i7 8th & 9th generation
- Memory Support
- Up to 64GB DDR4, Four DDR4 DIMM slots, dual-channel capable
- Hard Drive
- SATA, SSD
- Graphics
- Intel UHD Graphics 630
- Audio
- Realtek ALC233VB2 codec
- Communications
- Integrated 100/1000M
- I/O Front Ports
- 2x USB 3.1 Gen 1, 2x USB 3.1 Gen 2, 1x USB-C? 3.1 Gen 1, 1x headphone / microphone combo jack (3.5mm), 1x microphone
- I/O Rear Ports
- 4x USB 2.0, 1x VGA, 2x DisplayPort, 1x serial (9-pin), 1x Ethernet (RJ-45)
- Power
- 180W or 210W or 260W
- Dimensions
- 92.5 x 290.5 x 343.5 mm
- Weight
- Around 6.0 kg
