MaterialMetal base with plastic machine body

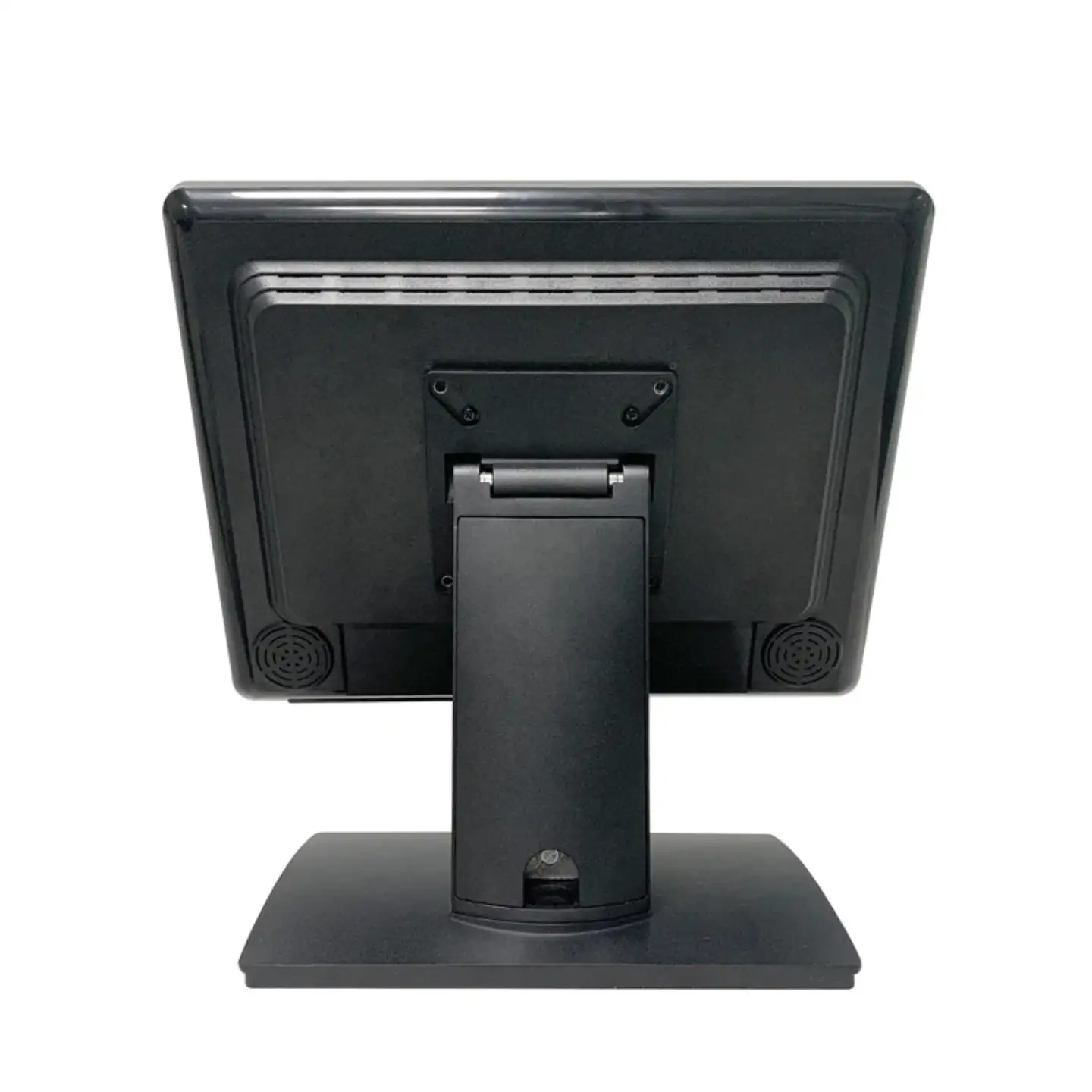

VESA75*75mm for wall mounting(need extra wall mounting bracket)
Display area304.128(H)* 228.096(V)
Pixel pitch0.297*0.297
Aspect ratio4:3
Resolution1024*768
Brightness250cd/m2
Contrast700:1
Display color16.2M
View angleHorizon: 135; Vertical :140
Response time8ms
Touch screenMulti-point capacitive touch panel
Responding speed<5ms
Total light transmittance85% above
Touch life>50,000,000 times
Rear I/O12V DC in jack*1, USB *1 for touch function, 15PIN D-sub VGA *1,
Side key functionAuto, Menu,Up,Down,Power Swicth
Operating temperature0 to 40 degrees centigrade
