New UPS

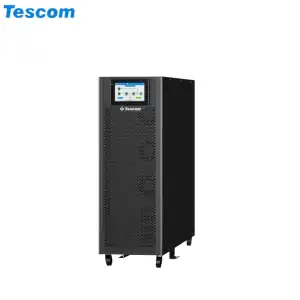

UPS 3320ST TESCOM TEOS 400E PRO 20KVA/20KW NEW

Is expected

Code: 0.502.135
Category: Tescom UPS
Rated Voltage: 380 / 400 / 415 Vac (L-L)
Voltage range: 304~478Vac (L-L), full load 228V~304Vac (L-L), load decrease linearly according to the min phase voltage
Rated frequency: 50 / 60 Hz (auto-sensing)
Frequency range: 40 ~ 70 Hz
Power factor: > 0.99Total Harmonic Distortion (THDi) <3% (full linear load)
Rated Voltage: 380 / 400 / 415 Vac (L-L)
Voltage Regulation: = +- 1% (full linear load)
Frequency: Synchronized with utility in mains mode, 50/60 Hz ±0.1% in battery mode
Waveform: Sinusoidal
Power factor: 1
Harmonic Distortion: <1% (full linear load) <3% (full non-linear load according to IEC/EN62040-3)
Current Crest Ratio: 3:1
Overload: <110%, 60min, 110%~125%, 10min; 125%~150%,1min, >150%, 200ms
Bypass voltage range: Selectable, default -20%~+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
Bypass frequency range: Selectable, + - 1Hz, + - 3Hz, + - 5Hz
Bypass overload: 125%: long term operation; 125%~130%: 10min; 130%~150%: 1min; 150%~400%: 1s; >400%, less than 200ms
DC voltage: 120 ~ 240 Vdc settable
Charging current: 10A Max
Recharge time: 90% capacity restored in 8 hours
Charger voltage precision: 1%
Inbuilt battery: N/A
Efficiency: 95% Max
Transfer time: 0 ms
Protections: Short-circuit, output overload, overtemperature, battery low voltage, overvoltage / undervoltage and fan failure
Max. number of parallel connections: 4
Communications: RS232, USB, RS485, EPO, Dry contacts, Parallel port (Standard) SNMP card, WI-FI card, GPRS card, SMS alarms (Optional)
Display: LED + 5 inches LCD touch screen
Operating temperature: 0C ~ 40C
Storage temperature: Min 40 C Under Zero ~ 70 B360C (B360without battery)
Relative humidity: 0 ~ 95% (non-condensing)
Altitude: <1000m, load derated 1% per 100m from 1000 ~ 2000m
IP rating: IP 20
Noise level at 1 m: 58dB 100% load, 55dB 50% load
Dimensions (mm): 250 x 800 x 700
